2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition

Name: 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition
Brand: bonens
Price: 1 USD

Wholesale 2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition from china suppliers

Place of Origin : Sichuan, China

Brand Name : bonens

Model Number : Ceramic 2000W 8ohm

MOQ : 1

Resistance : 1Ω-10kΩ

Resistance Tolerance : ±5%

Type : Fixed Resistor

Technology : Ceramic Composition

Package Type : Through Hole

Rated Power : 2000 watt

Temperature Coefficient : ±250PPm

Dimensions D : 60±2 mm

Dimensions L1 : 510±2 mm

Dimensions L2 : 540±5 mm

Dimensions L3 : 560±3 mm

Dimensions N : 16±1 mm

Dimensions Φ : 6±1 mm

Reference Weight : 2.3 kg

Resistance Accuracy : ±5%

Contact Now

Product Description

2000W High Power Ceramic Resistor with 8 Ohm Resistance and Ceramic Composition

Product features

Product structure/size/specification

Rated power (W)	Dimensions（MM)									Reference weight （KG)	Resistance accuracy	Temperature Coefficient
Rated power (W)		D±2	L1±2	L2±5	L3±3	N±1	Φ±1			Reference weight （KG)	Resistance accuracy	Temperature Coefficient
10W	14	40	/	/	5	3	0.02	±5%	±250PPm
15W	14	45	/	/	5	3	0.02
20W	16	50	85	100	6	3	0.05
25W	20	50	85	100	6	3	0.05
30W	20	70	105	120	6	3	0.06
40W	20	90	125	140	6	3	0.08
50W	28	90	130	150	9	4	0.1
75W	28	140	180	200	9	4	0.15
100W	28	170	210	230	9	4	0.18
150W	28	215	250	270	9	4	0.22
200W	28	267	300	320	9	4	0.23
250W	28	267	300	320	9	4	0.32
300W	40	267	287	307	12	6	0.32
400W	40	300	320	240	12	6	0.36
500W	50	300	320	340	14	6	0.55
600W	50	300	320	340	14	6	0.95
800W	60	300	330	335	16	6	1
1000W	70	300	330	335	16	6	1.2
1200W	70	360	390	415	16	6	1.6
1500W	70	420	450	470	16	6	2
2000W	60	510	540	560	16	6	2.3
2500W	70	510	540	560	16	6	2.7
3000W	80	430	470	500	16	6	3
4000W	100	400	440	465	16	7	3.5
5000W	100	500	540	560	16	7	4.5
6000W	100	600	640	660	16	7	5.8
8000W	150	600	690	740	25	15	18
9000W	150	600	690	740	25	15	18
10KW	150	600	690	740	25	15	18

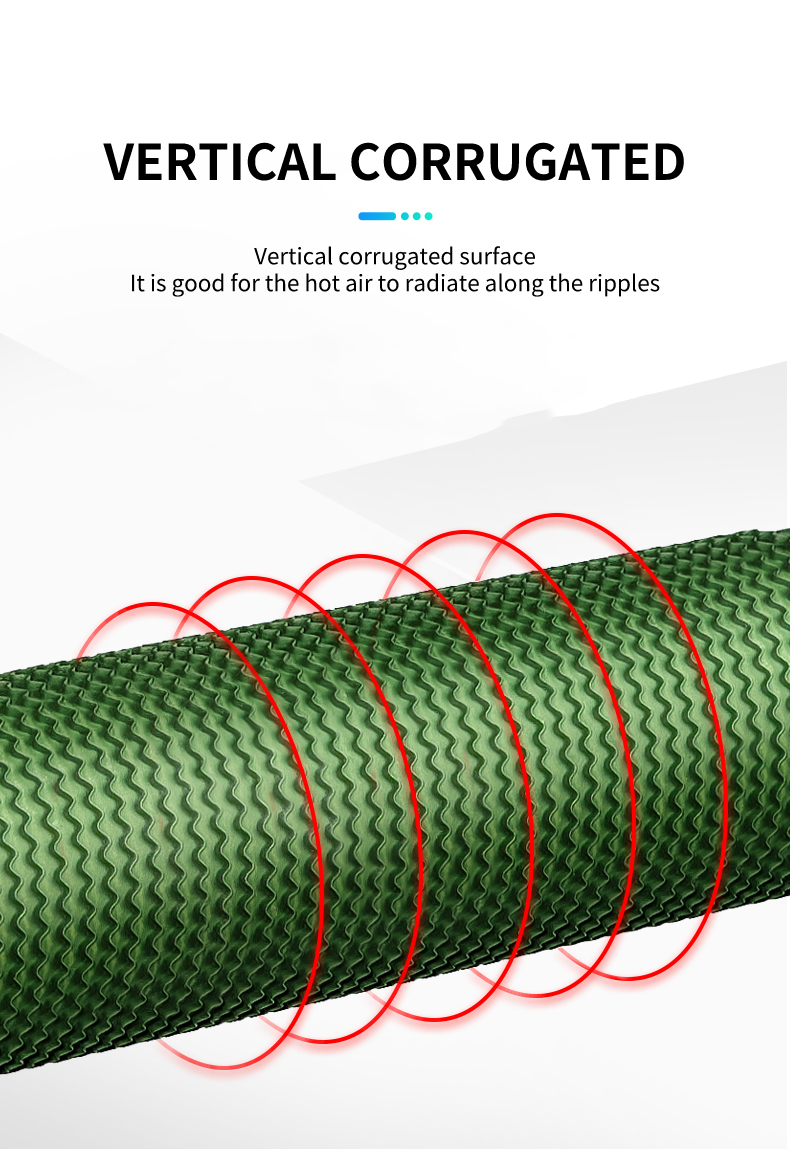

RX20/RXG20 load resistor braking resistor

Rx20 0.1R~10K ripple green 200 ohm 1000w wirewound resistor Corrugated wire wound resistor High-power corrugated wire-wound resistor braking braking resistor load inverter discharge RXG20 Braking resistance Winding power resistance Aging load resistance 50r resistor
Resistance value：10W 15W 20W 25W 30W 40W 50W 75W 100W 200W 250W 300W 350W 400W 500W 600W 800W 1000W 1200W 1500W 200W 2500W 3000W 4000W 5000W 6000W 8000W 9000W 10000W

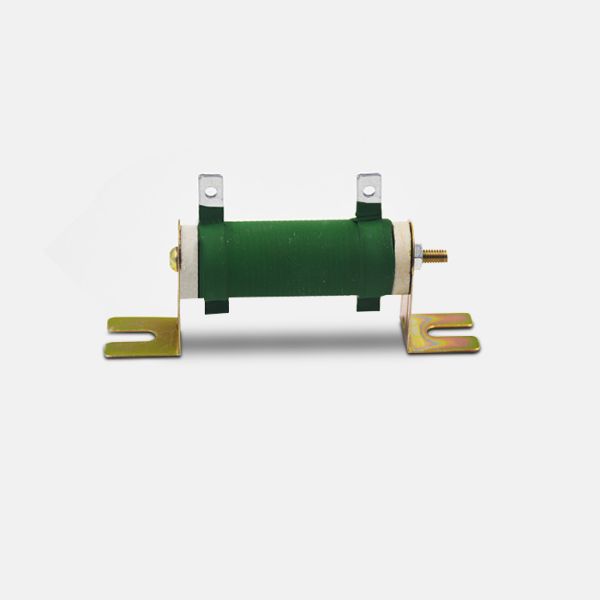

Product real shot

Product packaging

Features

1.Resistance surface is paint, power range is wide 2.Excellent high temperature load performance 3.Full welded structure 4.High reliability
