3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design

Product Categories
Sichuan Qixing Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30

Resolution : Infinite

Application : Instruments, power equipment

Range of nominal resistance : 10Ω~5M

Resistance tolerance : ±10% ±5% (customization)

Rated power : 0.25W ( 200V max)

Temperature range : -55°C~+125°C

Total mechanical travel : 12±2 cycles

Starting torque : ≤25mN.m

Brand Name : BONENS

Model Number : 3269P

Place of Origin : Sichuan, China

MOQ : 50

Price : $0.25-$0.4

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,

Supply Ability : 1000/7 days, 5000/10 days 10000/14 days

Delivery Time : 5-8 work days

Packaging Details : Carton packaging

Type : SMD trimmer potentiometer

Element : Cermet

Contact Now

3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design

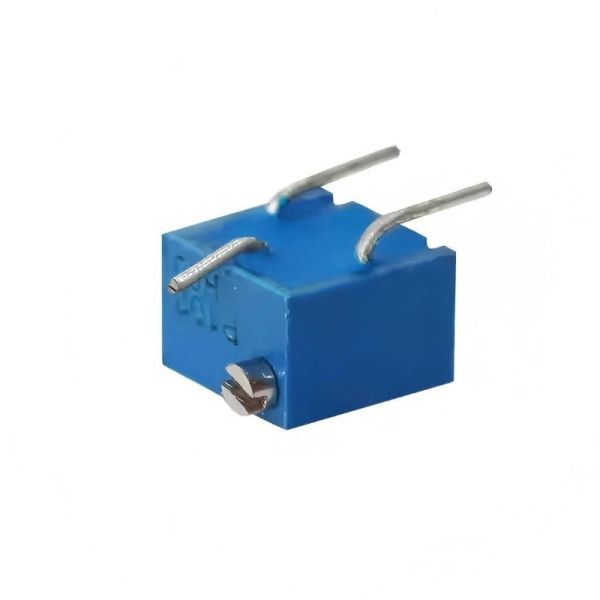

3269P variable resistor potentiometer
The 3269 series potentiometer is a type of potentiometer. It is usually composed of a resistive body and a rotating or sliding
system, that is, a moving contact moves on the resistive body to obtain a partial voltage output.
The function of the potentiometer is to adjust the voltage (including DC voltage and signal voltage) and the magnitude of the
current.
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design

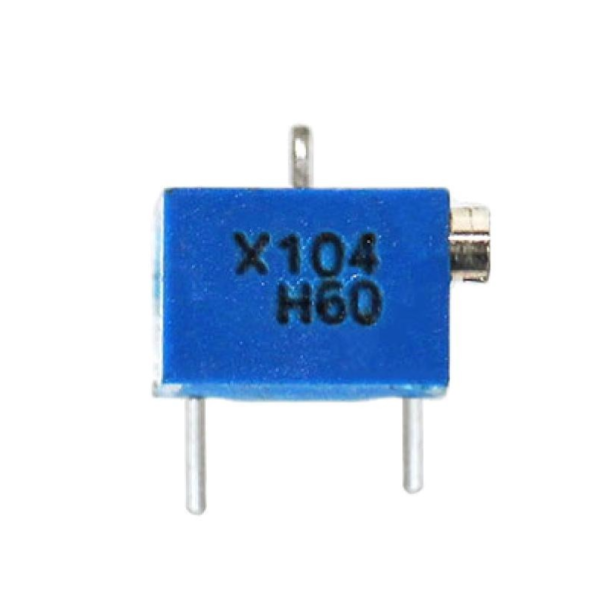

3269X variable resistor potentiometer
3269 potentiometers are mainly used in instruments, meters, post and telecommunications, power equipment, railway signals,aviation, aerospace and other fields
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W variable resistor potentiometer
Stable, infinite resolution cermet element
Vertical and horizontal adjust styles
Compatible with surface mount manufacturing processes
RoHS compliant
Product parameters
lectrical Characteristics
Range of nominal resistance
10Ω~5MΩ
Resistance tolerance
±10% ±5% (customization)
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Withstand voltage
600V (DC or AC peak value)
Effective electrical travel
12±2 cycles


Environment Characteristics
Rated power
0.25W ( 200V max)
Temperature range
-55°C~+125°C
Temperature Coefficient
±250, ±100ppm/°C
Collision (390m/S2, 4000 times)
ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min,
+125°C/30min, 5 cycles)
ΔR≤±2%R,
ΔUab/Uac≤±1%R
Climate category (IEC68-2-2)
ΔR≤± (3%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (0.5W, 1000h)
ΔR≤± (3%R+0.1Ω),CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles)
ΔR≤± (3%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h)
ΔR≤± (3%R+0.1Ω), Insulation Resistance≥100MΩ
Physical Characteristics
Total mechanical travel
12±2 cycles
Starting torque
≤25mN.m
Product size
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
3269W Trimmer Potentiometer Infinite Resolution Cermet Element Precise Adjustment SMD Design
A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
Q5: How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
